가시다님이 운영하시는 CI/CD Study 4주차 내용과 예제로 배우는 ArgoCD 책의 내용을 정리한 게시글 입니다.

3. ArgoCD 운영

실습 환경 구성

Git Repository를 신규로 추가를 해야합니다.

# kind k8s 배포
kind create cluster --name myk8s --image kindest/node:v1.32.8 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  extraPortMappings:
  - containerPort: 30000
    hostPort: 30000
  - containerPort: 30001
    hostPort: 30001
  - containerPort: 30002
    hostPort: 30002
  - containerPort: 30003
    hostPort: 30003
- role: worker
- role: worker
- role: worker
EOF

# git Repository Clone
git clone https://github.com/ymir0804/my-sample-app.git
cd my-sample-app
mkdir resources

# 매니페스트 파일 작성 및 배포
cat << EOF > resources/namespace.yaml
apiVersion: v1
kind: Namespace
metadata:
  name: argocd
EOF
kubectl apply -f resources/namespace.yaml
wget https://raw.githubusercontent.com/argoproj/argo-cd/refs/heads/master/manifests/ha/install.yaml
mv install.yaml resources/
kubectl apply -f resources/install.yaml -n argocd

kubectl get secret -n argocd argocd-initial-admin-secret -o jsonpath='{.data.password}' | base64
-d ; echo
# jfc9E95-x3CHSh7X

# 새로운 터미널에서 port-forward 수행
kubectl port-forward svc/argocd-server -n argocd 8080:80

# 웹 UI 접속
wslview https://127.0.0.1:8080

# 원격 리포지터리에 커밋하고 푸시한다.
git add . && git commit -m "Deploy Argo CD " && git push -u origin main

ArgoCD HA Mode

ArgoCD HA Mode의 핵심은 ArgoCD의 구성요소(Controller, Repo server ,Server)와 Redis를 다중화로 구성하는 것 입니다.

Redis는 Sentinel + HAProxy를 사용하여 장애 시 자동으로 FailOver가 발생하며, Controller는 Leader Election으로 1대만 Active를 하고 나머지는 Standby로 유지 합니다.

Repo Server와 Server는 수평확장으로 배포하여 부하를 분산시킵니다.

모든 구성 요소들은 ArgoCD CRD를 Watch하여 자동으로 GitOps를 수행하게 해줍니다.

ArgoCD 자체 관리

ArgoCD Application을 만들고 Manifest에 특정 폴더를 지정하여 AutoPilot Mode처럼 자기 자신을 Application으로도 관리할 수 있습니다.

cat <<EOF | kubectl apply -f -
apiVersion: v1
kind: Secret
metadata:
  name: my-repo-secret
  namespace: argocd
  labels:
    argocd.argoproj.io/secret-type: repository
stringData:
  type: git
  url: https://github.com/ymir0804/my-sample-app.git
  password: <PAT>
  username: ymir0804
EOF

# Argo CD 애플리케이션 생성
cat <<EOF | kubectl apply -f -
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: argocd
  namespace: argocd
spec:
  project: default
  source:
    path: resources
    repoURL: https://github.com/ymir0804/my-sample-app.git
    targetRevision: main
  syncPolicy:
    automated: {}
  destination:
    namespace: argocd
    server: https://kubernetes.default.svc
EOF

kubectl get applications.argoproj.io -n argocd -owide
# NAME     SYNC STATUS   HEALTH STATUS   REVISION                                   PROJECT
# argocd   Synced        Healthy         7cc9d4627f2a0d247f3c1061e337fc1b94d8a367   default

Figure 3.1 ArgoCD 자체 관리 확인

Network Policy 항목을 삭제 후 원격 저장소에 반영을 하게 되면 상태가 어떻게 변경되는지 확인해보겠습니다.

kubectl get networkpolicies.networking.k8s.io -n argocd
# NAME                                              POD-SELECTOR                                              AGE
# argocd-application-controller-network-policy      app.kubernetes.io/name=argocd-application-controller      15m
# argocd-applicationset-controller-network-policy   app.kubernetes.io/name=argocd-applicationset-controller   15m
# argocd-dex-server-network-policy                  app.kubernetes.io/name=argocd-dex-server                  15m
# argocd-notifications-controller-network-policy    app.kubernetes.io/name=argocd-notifications-controller    15m
# argocd-redis-ha-proxy-network-policy              app.kubernetes.io/name=argocd-redis-ha-haproxy            15m
# argocd-redis-ha-server-network-policy             app.kubernetes.io/name=argocd-redis-ha                    15m
# argocd-repo-server-network-policy                 app.kubernetes.io/name=argocd-repo-server                 15m
# argocd-server-network-policy                      app.kubernetes.io/name=argocd-server                      15m


# 원격 리포지터리에 커밋하고 푸시한다.
git add . && git commit -m "Delete Network Policy Resource" && git push -u origin main

# 모니터링
watch -d kubectl get networkpolicies.networking.k8s.io -n argocd

Figure 3.2 Sync Policy Prune Resource 적용

ArgoCD에서의 관찰 가능성

ArgoCD에서 운영을 위해 필요한 관찰 가능성 정보를 파악해보겠습니다.

정보를 얻기 위해 Prometheus Stack(Prometheus, Grafana)를 설치해보겠습니다.

# prometheus 설치
helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
cat <<EOT > monitor-values.yaml
prometheus:
  prometheusSpec:
    scrapeInterval: "15s"
    evaluationInterval: "15s"
  service:
    type: NodePort
    nodePort: 30002

grafana:
  defaultDashboardsTimezone: Asia/Seoul
  adminPassword: prom-operator
  service:
    type: NodePort
    nodePort: 30003

alertmanager:
  enabled: false
defaultRules:
  create: false
prometheus-windows-exporter:
  prometheus:
    monitor:
      enabled: false
EOT


helm install kube-prometheus-stack prometheus-community/kube-prometheus-stack --version 75.15.1 \
-f monitor-values.yaml --create-namespace --namespace monitoring

wslview http://127.0.0.1:30002


# ServiceMonitor 생성
cat <<EOF | kubectl apply -f -
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: argocd-applicationset-controller-metrics
  namespace: monitoring
  labels:
    release: kube-prometheus-stack
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: argocd-applicationset-controller
  endpoints:
    - port: metrics
  namespaceSelector:
    matchNames:
      - argocd
---
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: argocd-repo-server-metrics
  namespace: monitoring
  labels:
    release: kube-prometheus-stack
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: argocd-repo-server
  endpoints:
    - port: metrics
  namespaceSelector:
    matchNames:
      - argocd
---
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: argocd-server-metrics
  namespace: monitoring
  labels:
    release: kube-prometheus-stack
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: argocd-server-metrics
  endpoints:
    - port: metrics
  namespaceSelector:
    matchNames:
      - argocd
---
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: argocd-dex-server
  namespace: monitoring
  labels:
    release: kube-prometheus-stack
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: argocd-dex-server
  endpoints:
    - port: metrics
  namespaceSelector:
    matchNames:
      - argocd
---
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: argocd-redis-haproxy-metrics
  namespace: monitoring
  labels:
    release: kube-prometheus-stack
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: argocd-redis-ha-haproxy
  endpoints:
    - port: http-exporter-port
  namespaceSelector:
    matchNames:
      - argocd
---
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: argocd-notifications-controller
  namespace: monitoring
  labels:
    release: kube-prometheus-stack
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: argocd-notifications-controller-metrics
  endpoints:
    - port: metrics
  namespaceSelector:
    matchNames:
      - argocd
EOF

# guestbook helm 차트 애플리케이션 생성
cat <<EOF | kubectl apply -f -
apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: guestbook
  namespace: argocd
  finalizers:
  - resources-finalizer.argocd.argoproj.io
spec:
  project: default
  source:
    helm:
      valueFiles:
      - values.yaml
    path: helm-guestbook
    repoURL: https://github.com/argoproj/argocd-example-apps
    targetRevision: HEAD
  syncPolicy:
    automated:
      enabled: true
      prune: true
      selfHeal: true
    syncOptions:
    - CreateNamespace=true
  destination:
    namespace: guestbook
    server: https://kubernetes.default.svc
EOF

# Grafana Web DashBoard 접속 후 https://github.com/argoproj/argo-cd/blob/master/examples/dashboard.json 해당 Dash Board Import
wslview http://127.0.0.1:30003

ServiceMonitor 생성 시 반드시 release: kube-prometheus-stack Label이 포함되어있어야 Metric을 수집 할 수 있습니다.

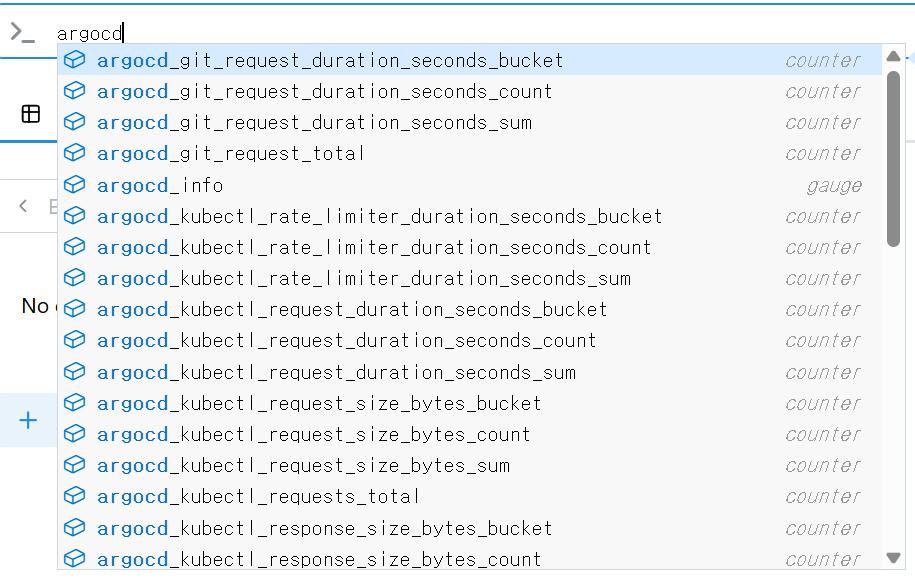

Figure 3.3 Prometheus에서 확인되는 Metric 정보

Figure 3.4 Grafana에서 확인되는 ArgoCD 정보

백업 + 복원

ArgoCD에서 백업 후 신규 복원을 해보겠습니다.

# argocd 서버 (http) 로그인 VwgDi0bUzXS10MaS
ARGOPW=Ujfc9E95-x3CHSh7X
argocd login localhost:8080  --username admin --password $ARGOPW --insecure

# 'admin:login' logged in successfully
# Context 'localhost:8080' updated


# 백업 생성
argocd admin export -n argocd > backup.yaml
# 244

# 신규 cluster 생성
kind create cluster --name myk8s2 --image kindest/node:v1.32.8 --config - <<EOF
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  extraPortMappings:
  - containerPort: 31000
    hostPort: 31000
  - containerPort: 31001
    hostPort: 31001
  - containerPort: 31002
    hostPort: 31002
  - containerPort: 31003
    hostPort: 31003
- role: worker
- role: worker
- role: worker
EOF


# 설치 확인
kubectl config get-contexts


# alias 설정
alias k8s1='kubectl --context kind-myk8s'
alias k8s2='kubectl --context kind-myk8s2'

# 신규 클러스터에 argoCD HA 설치
k8s2 apply -f resources/namespace.yaml
k8s2 apply -f resources/install.yaml -n argocd

# 신규 클러스터 포트포워딩 적용(신규터미널)
kubectl port-forward svc/argocd-server -n argocd 8081:80 --context kind-myk8s2

# 신규 클러스터 secret 확인
k8s2 get secret -n argocd argocd-initial-admin-secret -o jsonpath='{.data.password}' | base64 -d ; echo
# 0wxRcRzjftraHZgl

# 신규 클러스터에 복원
ARGOPW2=0wxRcRzjftraHZgl
argocd login localhost:8081  --username admin --password $ARGOPW2 --insecure

# 'admin:login' logged in successfully
# Context 'localhost:8081' updated

# 백업 시 Main Password로 변경됨
argocd admin import -n argocd - < backup.yaml
# Import process completed successfully in namespace argocd at 2025-11-08T23:28:22+09:00, duration: 116.658115ms

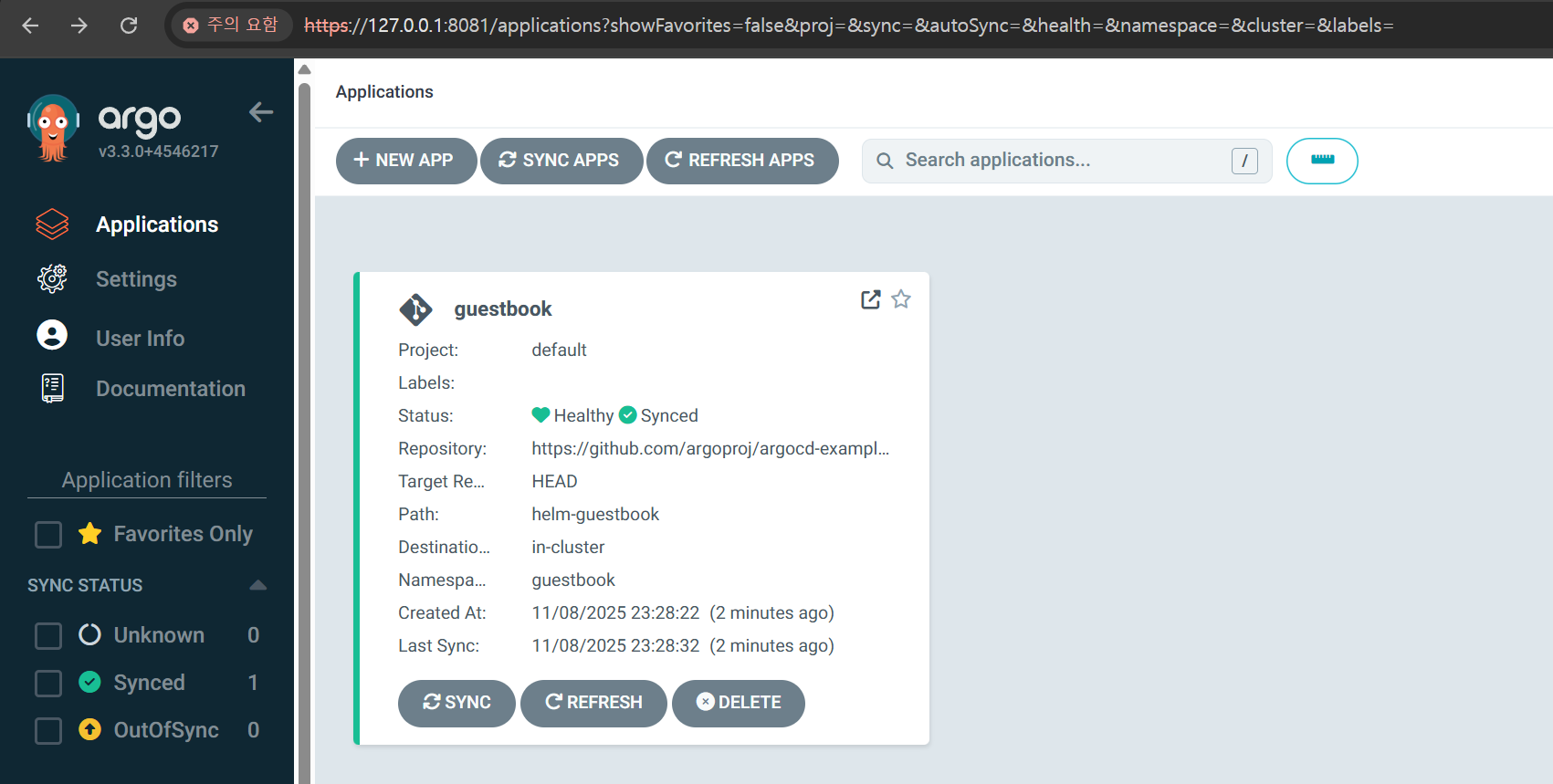

Figure 3.5 ArgoCD 백업 확인
